Aqua Forte 160 tlakový reaktor pro míchání ozonu, napojení in/out 40 mm, napojení ozonu 6 mm, max. průtok 10 m3/h

 The ideal ozone reactor which can be installed under pressure (below
water level). Thanks to an ingenious air bleeding system, water can be pumped
in under pressure, without the need for an outlet above water level. That is why
this system is ideal to be combined with e.g. a beadfilter system, which is often
installed below (or even with) the water level.

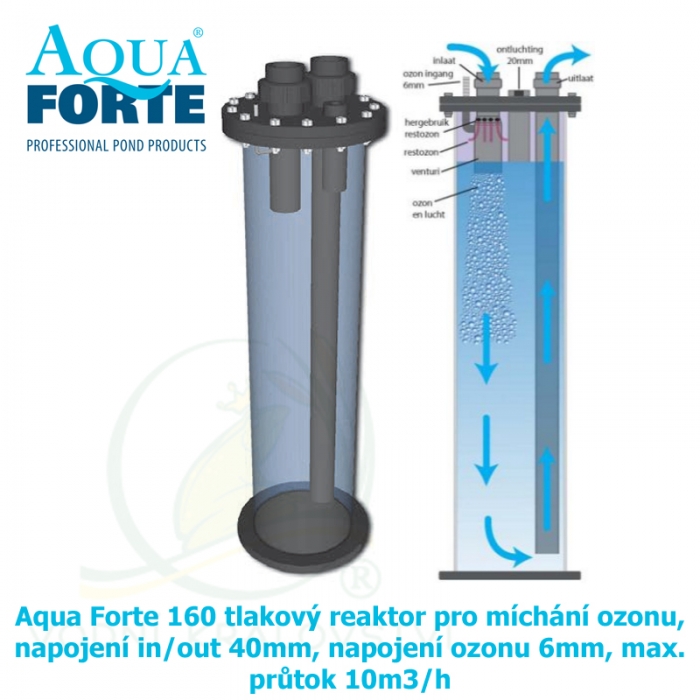

Method of operation: The water is pumped into the reactor through a venturi.
With a little amount of air, ozone is also pumped into this venturi. In the venturi
there is a stainless steel screen to create fine air bubbles, so that water and
ozone can be optimally mixed. The water can only leave the system through the
lower outlet, which extends the time of contact. Any residual ozone can leave the
system at the top through the 20 mm outlet on the lid. This can be led through a
residual ozone destroyer (like a pipe filled with activated carbon) or led to the
outside via a vent hose (Attention! The exit must be at least 2 metres away from
any kind of surrounding property to make sure that for example window sealant
is not damaged).
